I-OPA380AIDGKT yeyona ndlela iphezulu yokusebenza kwi-amplifier ye-transimpedance (TIA) egqityiweyo yi-Texas Instruments, ekhelwe ngokukodwa ukuqinisekisa umphumo wokucoca isiginali ye-analog enobuchule obuphambili kwiimeko ezinzima zombane. Le ncwadi iqengqelekisi ehlanganisiweyo ephethe imingeni yobuchwephesha obuxabisekileyo kwindawo yokuziva iinguqu ezincinci zomqhubi wamandla kunye nokuphendula okukhulu kwindawo yokushisa ukusuka kwi- -40°C ukuya kwi-125°C.
Njengomqhubi we-linear wecircuit enye, le mveliso ikhusela kwi-conversion encinci yomvelwano wombane ibe yisiginali yevolthi enokufunyanwa ngemveliso enkulu. Imveliso yakhe yonikezelo lwevolthi ephantsi kakhulu ye-input bias current engena kwi-3 picoamperes kunye ne-voltage offset encincu ye-input eyi-4V yenze ukuba ilunge ukuba setyenzisiwe kwiimeko zokusebenza ezinzulu ngaphezu komzali we-volthi, ezifana nokucoca isiginali ye-photodiode, ukufunda ngokukhanya, kunye neenkqubo zokulinganisa ezineengqondo ezinzulu.
Le amplifier inokuqhuba ngevolthi enye okanye ezimbini ezivela kwi-2.7V ukuya kwi-5.5V, isetyenziselwa kuphela i-7.5mA yomthwalo wombane. Ikhupha i-gain bandwidth product e-90MHz kunye ne-slew rate ye-80V/s, ivumela ukucubungula isiginali okukhawulezayo kunye nobuchule obuphambili bokuphinda-phinda. Le mveliso ixutywe kwi-8-VSSOP (Very Small Outline Package) enesiphelo esincinci sokubeka ngeengxenye zenjini, ikhulula ulwazi lomqambi wokunciphisa indawo kwiinkqubo zombane.
Iimpawu eziphambili ziquka ukugqitywa ngaphandle kobhontsi be-RoHS, ukuzinza okugqwesileyo kwindawo yokushisa, kunye nokusebenza okukhulu kwiinkqubo zolawulo lwemfundo, izixhobo zenyanga, iinkqubo zokunxibelelana nokukhanya, kunye nomphambili wezibane eziyimfuneko ezingaphantsi kobungozi buzothando kunye nokuguqulwa okuphambili kwezinye iindlela zokwenza umsebenzi ophambili.
Iimodeli ezifanayo okanye ezinxibelelanayo ezineempawu ezifana ne-OPA363, i-OPA380, kunye nezinye ii-amplifier ze-transimpedance kwi-portfolio ye-Texas Instruments ye-analog enexabiso liphantsi. Ukunxibelelana kweemodeli nezikhokelo zomqhubi zicwangcisa kakuhle ukunceda abaphandi, abenzi bezixhobo, kunye nabakhi bokuzama be-precision, benza ukuba le mveliso ibe lukhetho oluphambili noluncedo.
I-OPA380AIDGKT imele isisombululo esiphambili kwizicelo ezidinga ukukhutshwa okucothukileyo kwezwi, ukuhambisa okuphezulu kwevolthi, kunye nokuphendula okungcono kwezikhombisi zomphumo yezimo ezahlukeneyo zokusebenza.
OPA380AIDGKT Iimpawu eziyisiseko zobugcisa
I-OPA380AIDGKT isekwe uyilelwe ngokukodwa ukunceda kwiinkqubo ezikhawulezileyo zokuphendula kunye nokuqhubekeka komsebenzi, unikezela ngesantya esiphezulu sokuphendula esifika kwi-80 V/s kunye nomsebenzi wokuphindaphinda kwe-gain of 90 MHz, oku kukwenza ukuba alungele iimfuno zokuphinda-phinda ezikhawulezileyo. Inika ingcinezelo kuvoltage yokuxhasa ukusuka kwi-2.7 V ukuya kwi-5.5 V, oku kunika ukuguquguquka ngokuxhomekeke kwiimfuno zakho zombane. Iquka ukukhupha kwemveliso ephantsi, engu-3 pA, kunye nesiphumo somlinganiselo wokuphuma ofika ku-4 V, oku kunceda ukusetyenziswa ngokuchanekileyo ngaphandle kwamaphutsa.
OPA380AIDGKT Ubungakanani bokupakisha

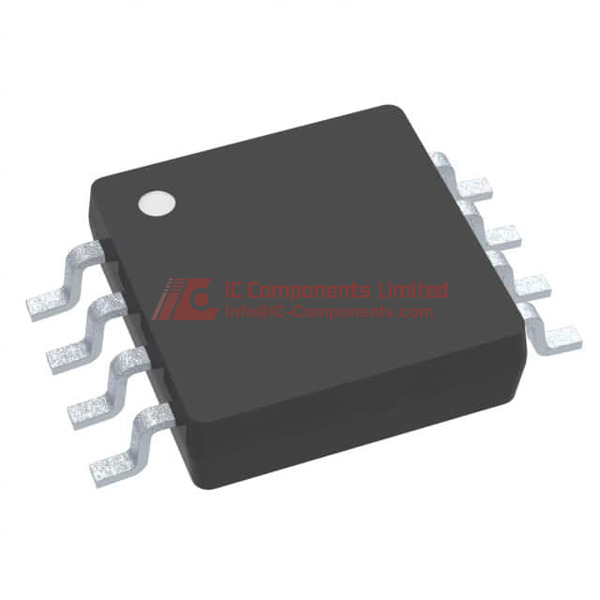

Uhlobo lwe-encapsulation yi-MSOP8, kulungelelanisa i-8-VSSOP, kulula ukuyihlanganisa kwiiboard ezahlukeneyo zokunyusa kunye nokunciphisa ukungqubana kwezixhobo. Ubungakanani bokupakisha buyilula kwaye bufanelekileyo kwiindawo ezahlukeneyo zokwenziwa kunye nokufuna ukhetho oluninzi lwezakhelo.
OPA380AIDGKT Usebenzi
Le modeli ifanelekileyo kumashishini ahlukeneyo afuna ukuphonononga okwe-onic engineering, imigca yezobuchwepheshe bokunyusa, iimpawu zonyango ezifana neesixhobo zonyango kunye neenkqubo zolwamkeli bemiboniso efanelekileyo njengamagalelo e-photodiode, izivamiso ezikoko kunye nemveliso yophando lwezibane. Kuba ikhawulezise ukukhawuleza kunye nokusebenza ngokuchanekileyo, iyaphumelela kwizicelo ezixengisa ngokukhawuleza nokuphathwa kwabantu.
OPA380AIDGKT Iimpawu
I-OPA380AIDGKT iqhutywa ngokukodwa kwiimeko zokusebenza ezikhawulezayo ze-transimpedance, inika umqhubi oshushu kwi-80 V/s kunye nebhendi yokuphindaphinda ye-gain eyi-90 MHz, nto leyo eyenza ibe kukhetho oluhle kwiindlela zokuphinda-phinda ezikhawulezileyo. Ukuxhasa okuthe nkqo kwevoltage ukusuka kwi-2.7 V ukuya kwi-5.5 V kuhambisa ukuguquguquka okukhulu kwimigomo yamandla. Iphinde inike ukungena okuphantsi kwebias current ye-3 pA kunye nenqanaba lemvamisa yokuphuma eyi-4 V, oku kunceda ukufikelela kwiimpawu eziphezulu ngokuchanekileyo kunye nokunciphisa iimpazamo.
OPA380AIDGKT Ubungqina bokhuseleko kunye neenkcukacha zomgangatho
Le mveliso ayinazingisi i-lead kwaye iyahambelana ne-RoHS, eziqinisekisa ukhuseleko lwendalo. I-Level ye-Moisture Sensitivity Level (MSL) ibekwe kwinqanaba lesi-2 (unyaka omnye), equka izikhokelo zokuphatha ukuze kuqinisekiswe ukhuseleko kwiimeko zomsi okanye ukufudumeza okungafunekiyo.
OPA380AIDGKT Ukuvumelana
Le modeli ye-OPA380AIDGKT ihloselwe ukufakwa kwiindawo ezisebenzayo zokuxhasa i-8-VSSOP okanye i-8-MSOP, iqinisekisa ugqibo olubanzi ekusebenziseni ngemigca yeebhodi ezahlukeneyo zecircuit. Ikwahambelana nazo zonke iindlela zokuhlanganisa ezibekelwe ngabavelisi bezixhobo ze-elektroniki.
OPA380AIDGKT I-PDF yeDataSheet
Sinikezela ngeedatha zezinye zazo zonke ezibalulekileyo nezingentla kwi-datasheet esemthethweni ye-OPA380AIDGKT. Abathengi bayatshelwa ukuba baphakamise kwaye balande ngolwazi olupheleleyo olufumanekayo kwiwebhusayithi yethu, luquka iinkcukacha zomgangatho, ukusebenza kunye nokugqwesa kwesicelo sobuchwephesha.
Umphakeli kuKhuseleko noMgangatho
IC-Components ngumthengisi ophambili weemveliso ze-Luminary Micro / Texas Instruments, kuquka ne-OPA380AIDGKT. Siyakuncebisa ukuthola ikwotshi ngokuthe ngqo kwiwebhusayithi yethu ukunceda ukufumana oko kufumaneka ngexabiso elifanelekileyo kunye nomgangatho ophezulu, ukubonelelwa ngenkonzo ebanzi nesithabathaba.
